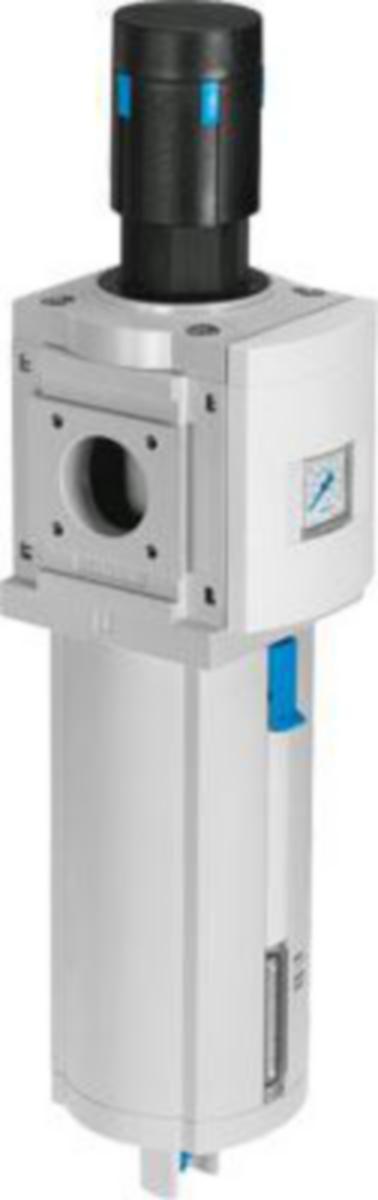

Suodatinsäädinyksikkö Festo MS9-LFR, MS-sarjat

Flow rate 6,000 … 23,000 l/min. Temperature range –10 … +60 °C. Supply pressure 1 … 20 bar
Good regulation characteristics with low hysteresis and primary pressure compensation. Good particle and condensate separation. Piloted or directly actuated filterdiaphragm regulator. High flow rates. Available with or without secondary venting. Four pressure regulation ranges: 0.5 … 4 bar, 0.5 … 7 bar, 0.5 … 12 bar and 0.5 … 16 bar. Pressure gauge connection for different fitting options. Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain. Actuator lock to protect set values against adjustment. Optional pressure sensor. Choice of filter cartridges: 5 μm or 40 μm. New filter cartridges 49. Optional device variant EX4 for use in potentially explosive areas in zones 1, 2, 21 and 22.
