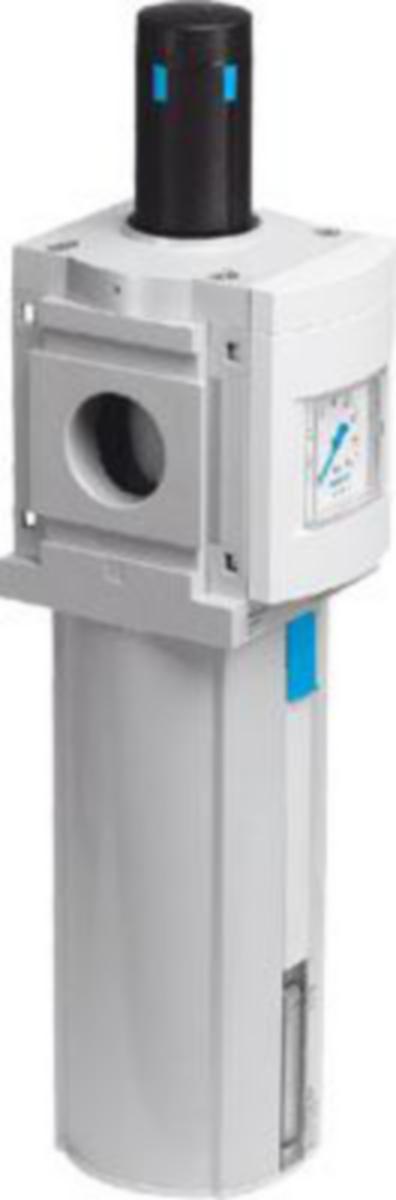

Suodatinsäädinyksikkö Festo MS12-LFR, MS-sarja

Flow rate 11,000 … 17,000 l/min. Temperature range –10 … +60 °C. Operating pressure 0.8 … 20 bar.
With this device, the filter and pressure regulator are combined into a single unit. The sintered filter with water separator removes contamination,
pipe sinter, rust and condensate from the compressed air. Good control characteristics with low hysteresis and primary pressure compensation. Good particle and condensate separation. High flow rates. Pilot actuated diaphragm regulator without intrinsic air consumption. Three pressure regulation ranges: 0.3 … 7 bar, 0.5 … 12 bar and 0.5 … 16 bar. Pressure gauge connection for different fitting options. Available with manual, fully automatic or fully automatic, electrically actuated condensate drain. Regulator lock for protecting the values against adjustment. Choice of filter cartridges: 5 μm or 40 μm
