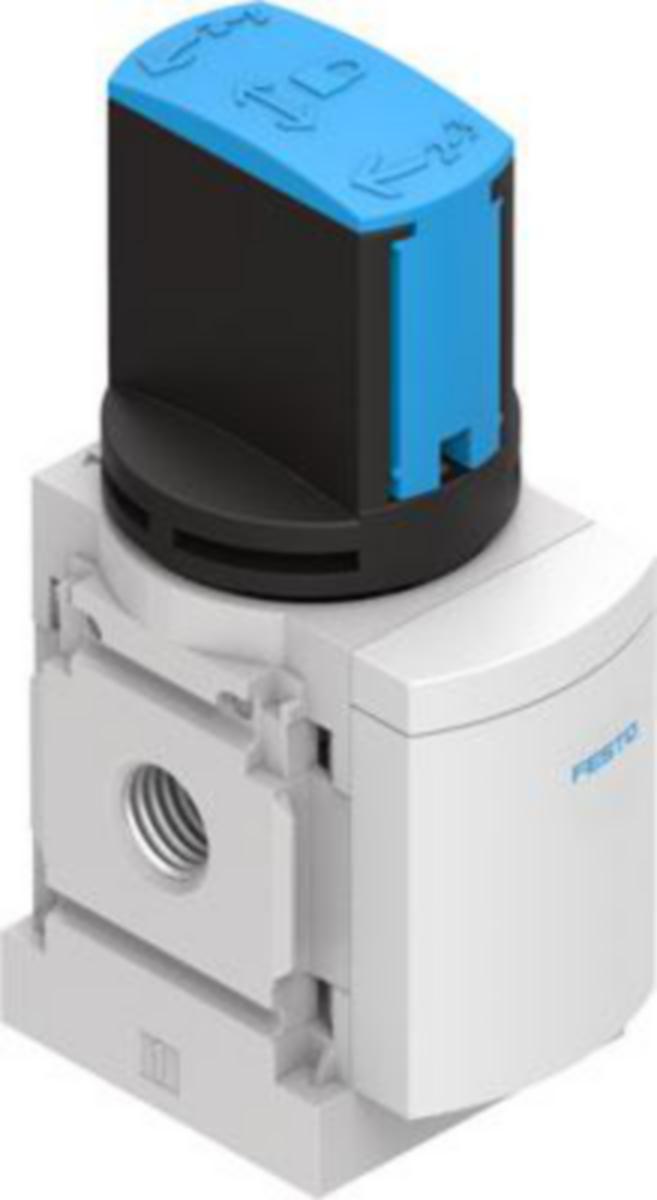

Start-Stop -venttiili Festo MS4/MS6-EM1 MS-sarja

Flow rate 1,200 … 8,700 l/min. Temperature range –10 … +60 °C. Operating pressure 0… 18 bar.
Manually operated on-off valve for pressurising and venting pneumatic installations. The valve is activated by turning the rotary knob. At connection 3 there is the facility to attach a silencer and/or to duct the exhaust air. When the valve is closed, the rotary knob can be secured with a padlock. Optional pressure gauge. Optional pressure sensor. Optional device variant EX4 for use in potentially explosive areas in zones 1, 2, 21 and 22.
