Logiikkamoduuli Schneider Electric Modicon

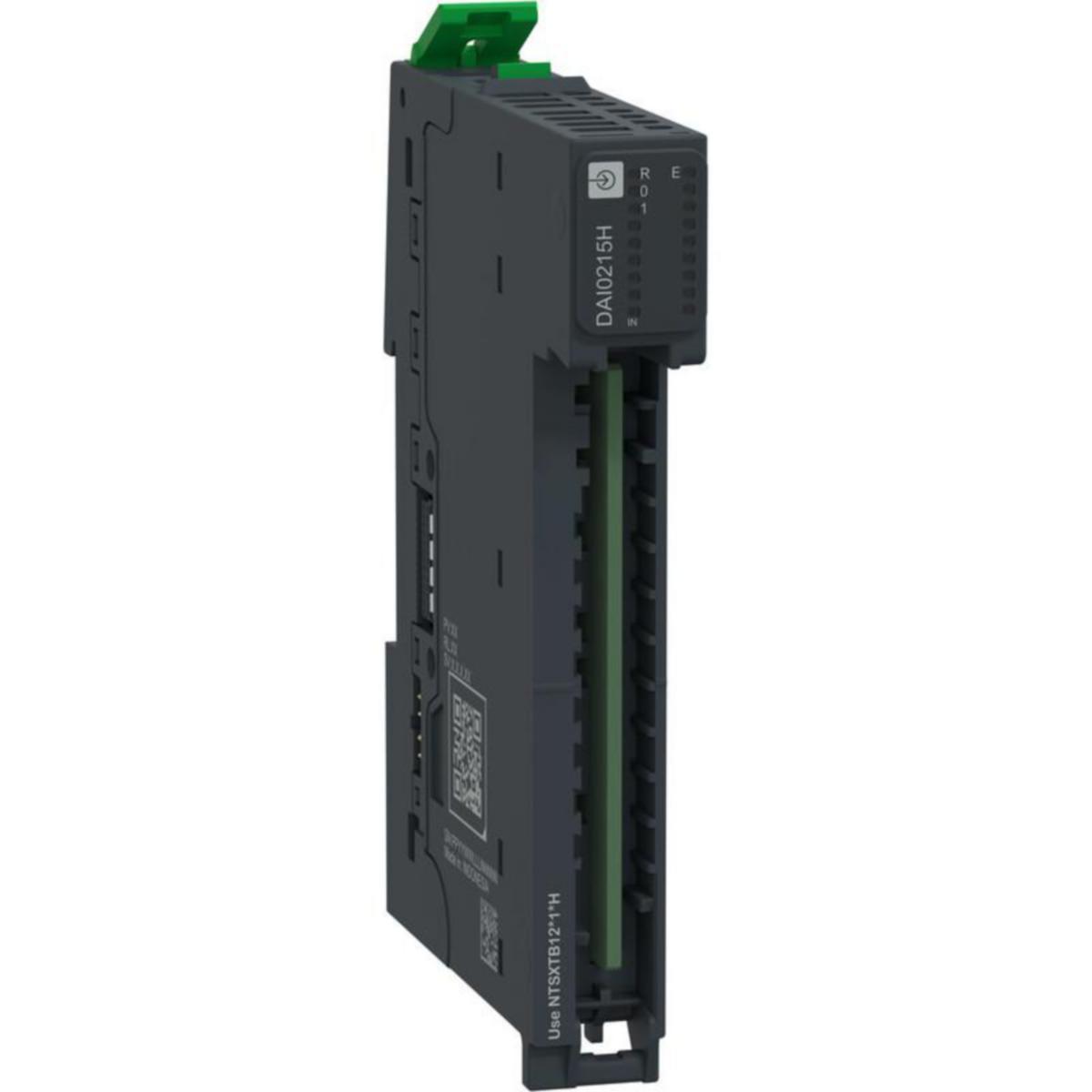

This discrete input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete input module. It features 2 isolated discrete inputs, compatible with 100V to 240VAC, with a sink logic, with a 1-2-3-wire connection. It is used in automation and control systems to monitor the status of various discrete (on/off) signals. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
