Huoltonostin PELA 3500kg, leveä malli

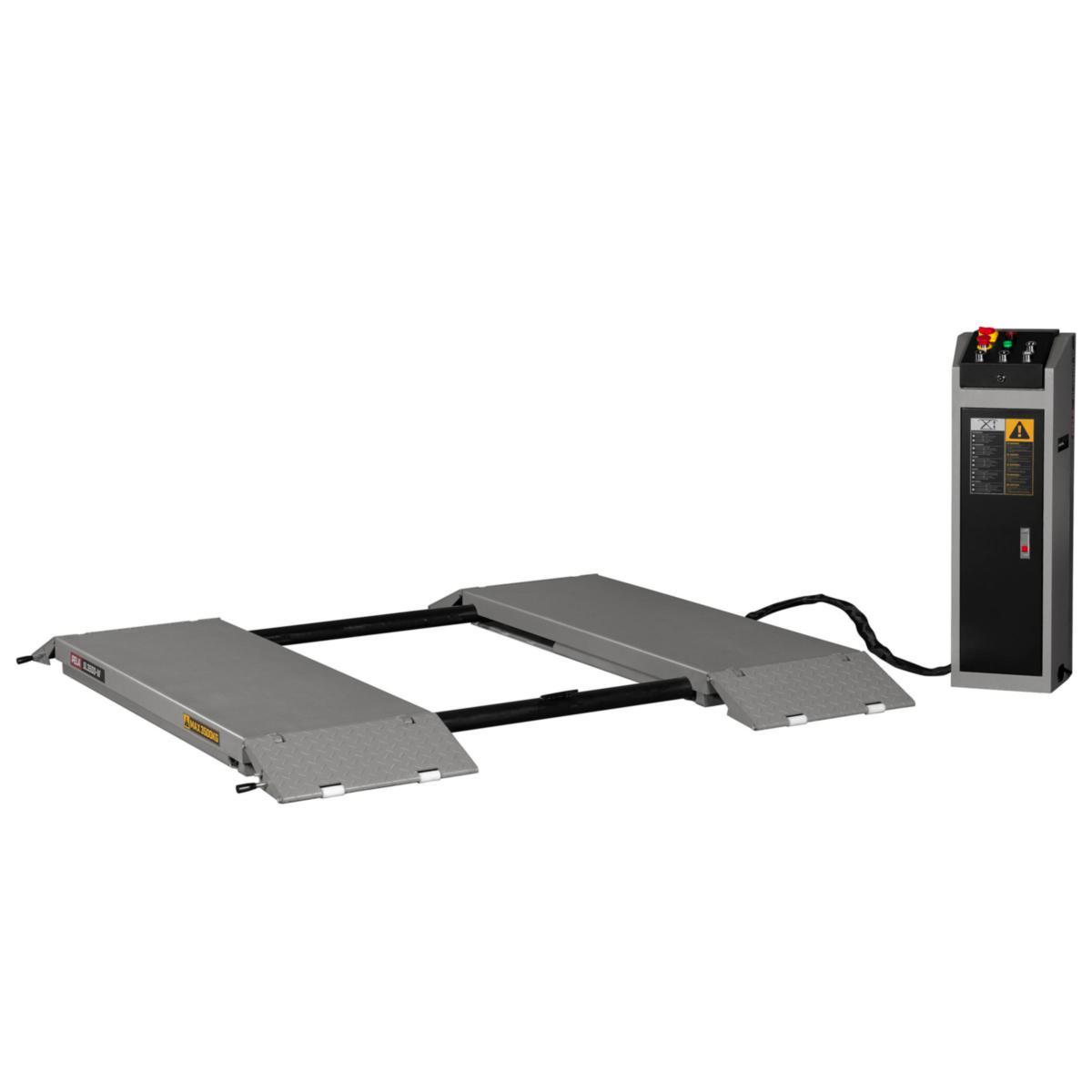

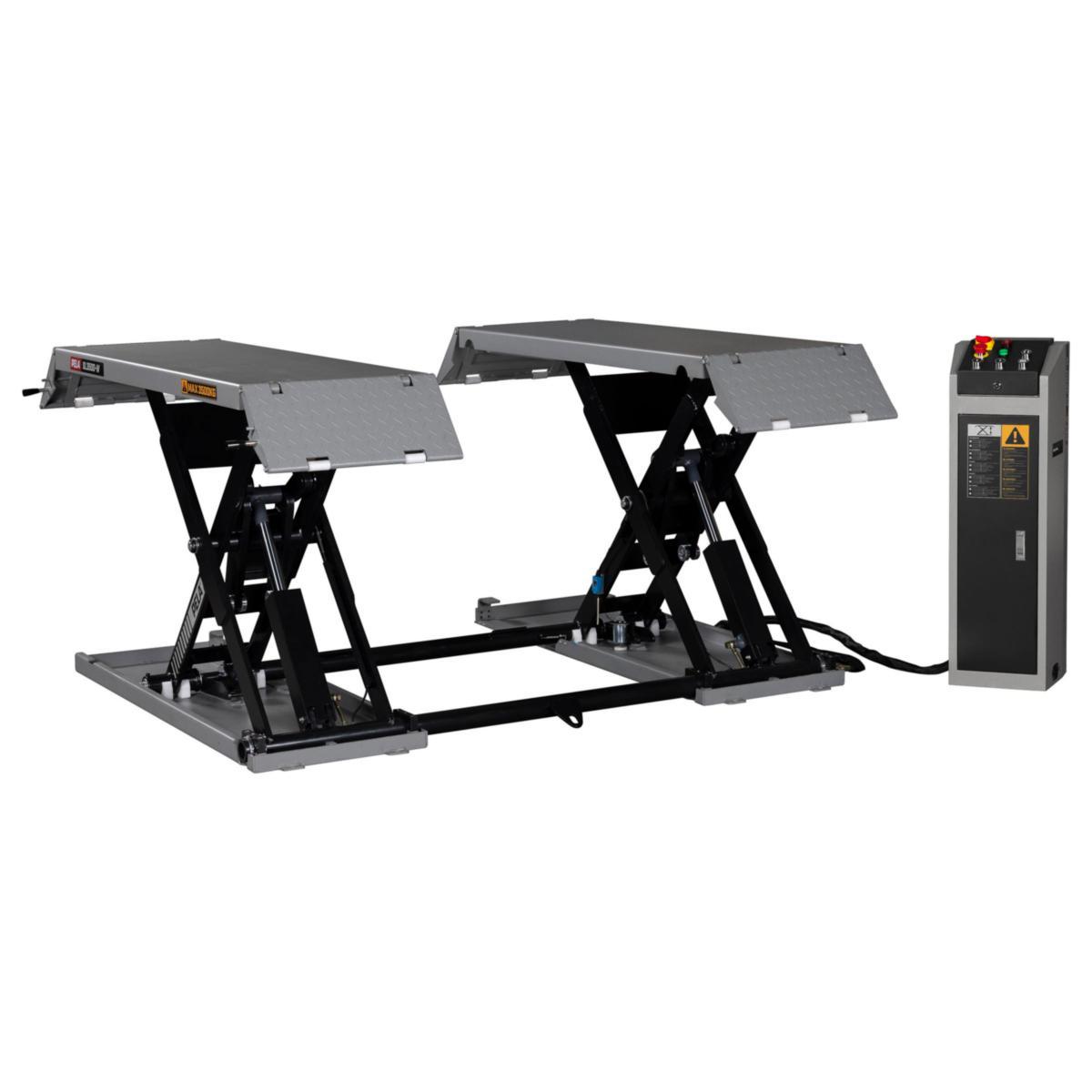

PELA Service Lift 3500 KG, wide – is an upgraded version of the service lift designed for tire changes and work along the sides of the vehicle. This new variant has the same reliable performance as the previous model but features wider platforms, making it better suited for lifting a greater variety of car types and models.

The lift is powered by an electric/hydraulic system and supports a lifting capacity of up to 3500 kg. It has eight fixed safety lock positions (550, 645, 723, 789, 846, 897, 942, and 983 mm), activated by electromagnets directly from the control panel – completely without the need for compressed air. The user‑friendly 24‑volt control system automatically shuts off the pump at the end position.

With a lifting height of 110–980 mm and a lifting time of only 30 seconds, you get an efficient workflow in the workshop. An eccentric at each hydraulic cylinder allows the lift to handle vehicles with stiff suspension or cars without wheels.

Operation is via 230 V / 50 Hz, with a powerful 2.2 kW motor and a 16 C fuse. The hydraulic system requires approximately 6 liters of hydraulic oil (VG32), filled separately.

For easy mobility, a wheel kit (item no. 571247) is available as an accessory. The kit can be mounted easily when the lift is raised about 10 cm, allowing the lift to be rolled smoothly when needed.

Working height (mm): At safety lock 550, 645, 723, 789, 846, 897, 942, and 983 mm
Drive system: Electric/hydraulic
Hydraulic oil: approx. 6 liters (VG32), not included
Lift/lower time (sec): 30 sec
Lifting height (mm): 110–980 mm
Fuse (A): 16 C A
